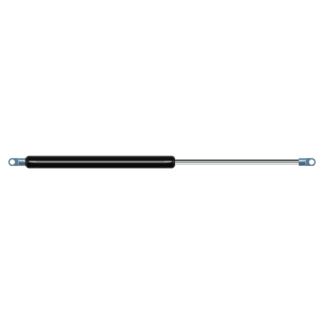

Replacement for Stabilus Lift-O-Mat 398535 0050N

$33.99



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 398535 0050N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 398535 0050N quantity

Add to basket

This gas spring is also known as CA398535.

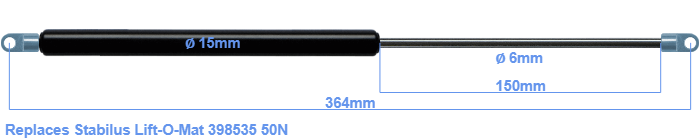

The diameter of the black cylinder of this gas spring is 15 millimeter. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement gas spring is 364 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 332 millimeter. This gas spring (398535) has a force of 50 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
