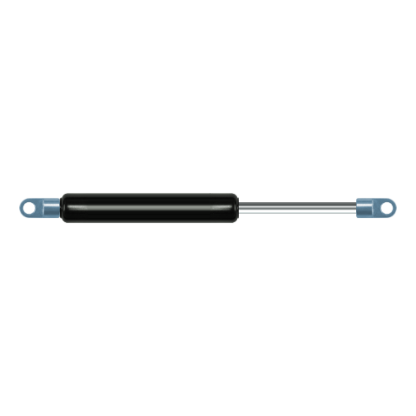

Replacement for Stabilus Lift-O-Mat 373788 0270N

$33.10



Replacement gas spring for the Stabilus Lift-O-Mat 373788 0270N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:

The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

This replacement gas spring is 4mm longer than the original gas spring. In general, this will not cause any problems.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 373788 0270N quantity

Add to basket

This gas spring is also known as CA373788.



The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The stroke of the gas spring is 60 millimeter. The total length of this replacement is exactly 184 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). The force of this replacement is 270 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This is a HAHN gas spring. The force (270 N) and dimensions are almost identical to the original.
