Replacement for Stabilus Lift-O-Mat 366765 0120N

$36.79



Replacement gas spring for the Stabilus Lift-O-Mat 366765 0120N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 366765 0120N quantity

Add to basket

This gas spring is also known as CA366765.

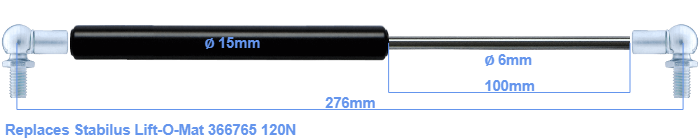

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod totals 6 mm. The stroke of the gas spring is 100 millimeter. In total, the length is 276 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 232 mm. The force of this replacement is 120 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions equal.
