Replacement for Stabilus Lift-O-Mat 366757 0100N

$36.79



Replacement gas spring for the Stabilus Lift-O-Mat 366757 0100N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 366757 0100N quantity

Add to basket

This gas spring is also known as CA366757.

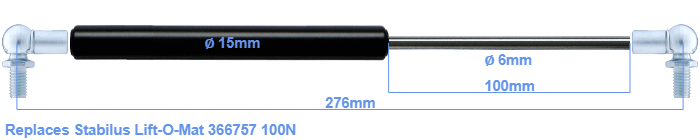

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The rod (the chrome part) is 100 mm long. The total length of this replacement gas spring is 276 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 232 mm. The force of this replacement gas spring is 100 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
