Replacement for Stabilus Lift-O-Mat 354899 0090N

$33.53



Replacement gas spring for the Stabilus Lift-O-Mat 354899 0090N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 354899 0090N quantity

Add to basket

This gas spring is also known as CA354899. This gas spring is also used in Thule Weekender, Jetbag Holiday 100.

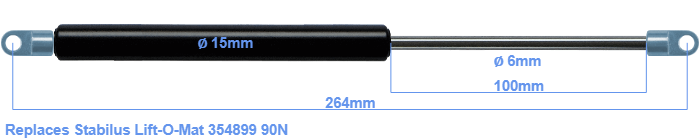

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod totals 6 mm. The stroke is 100 millimeter long. The total length of this replacement gas spring is 264 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 232 mm long (thread to thread). The force of this replacement is 90 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. The force (90 N) and dimensions are almost identical to the original.
