Replacement for Stabilus Lift-O-Mat 3529SB 0450N

$49.51



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Stabilus Lift-O-Mat 3529SB 0450N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 3529SB 0450N quantity

Add to basket

This gas spring is also known as CA3529SB.

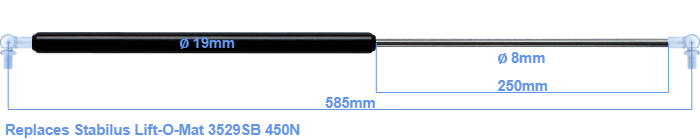

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The chrome part is called the rod. It has a length of 250 mm. The total length of this replacement is 585 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). The force of this replacement is 450 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
