Replacement for Stabilus Lift-O-Mat 3268KI 0300N

$33.30



Replacement gas spring for the Stabilus Lift-O-Mat 3268KI 0300N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 3268KI 0300N quantity

Add to basket

This gas spring is also known as Salice Lift-O-Mat 3268KI, CA3268KI.

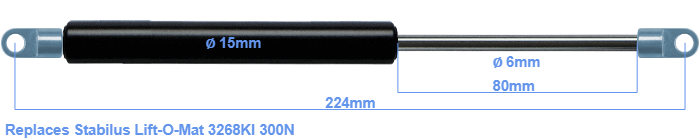

The diameter of the cylinder of this gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke is 80 millimeter long. The total length of this gas strut is 224 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. The force of this replacement gas spring is 300 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, the dimensions and force are nearly equal.
