$36.36
Replacement gas spring for the Stabilus Lift-O-Mat 3259QM 0070N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA3259QM.

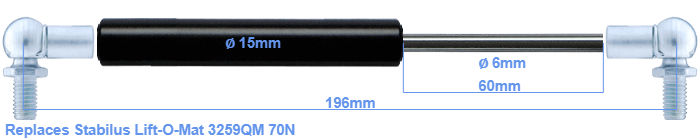

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The chrome part is called the rod. It has a length of 60 mm. The total length of this replacement is exactly 196 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). The force of this replacement gas spring is 70 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are equal.
