Replacement for Stabilus Lift-O-Mat 325856 0350N

$41.74



Replacement gas spring for the Stabilus Lift-O-Mat 325856 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 325856 0350N quantity

Add to basket

This gas spring is also known as CA325856.

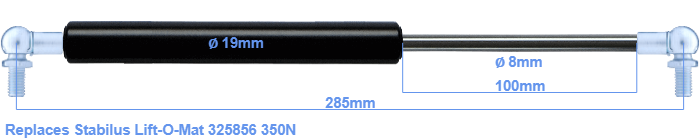

The bore of the house of this replacement gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke is 100 millimeter long. The total length of this replacement gas spring is 285 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 245 mm long (thread to thread). This replacement gas spring has a force of 350 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are equal.
