Replacement for Stabilus Lift-O-Mat 2901ZF 0150N

$61.85



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 2901ZF 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2901ZF 0150N quantity

Add to basket

This gas spring is also known as CA2901ZF.

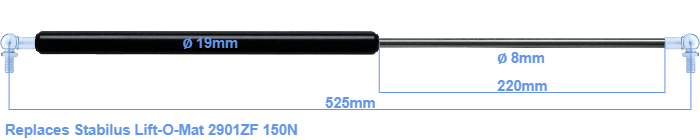

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod totals 8 mm. The chrome part is called the rod. It has a length of 220 mm. The total length of this replacement is exactly 525 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. The force of this replacement gas spring is 150 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
