Replacement for Stabilus Lift-O-Mat 287806 0250N

$40.89



Replacement gas spring for the Stabilus Lift-O-Mat 287806 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 287806 0250N quantity

Add to basket

This gas spring is also known as CA287806.

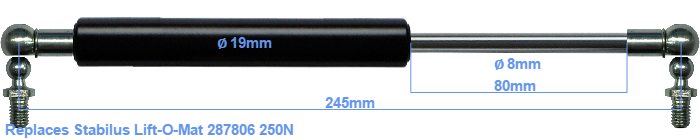

The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke is 80 millimeter long. The total length of this replacement is exactly 245 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 205 mm. This replacement gas spring (287806) has a force of 250 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are equal.
