Replacement for Stabilus Lift-O-Mat 287598 0280N

$42.56



Replacement gas spring for the Stabilus Lift-O-Mat 287598 0280N. Mounting part tube: The eye has a thickness of 10mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 5mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 5mm.

This replacement gas spring is 4mm shorter than the original gas spring. In general, this will not cause any problems.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 287598 0280N quantity

Add to basket

This gas spring is also known as CA287598.

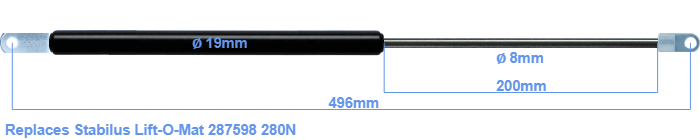

The bore of the house of this replacement gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke of the gas spring is 200 millimeter. The total length of this replacement is exactly 496 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. The force of this replacement gas spring is 280 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions close to equal.
