Replacement for Stabilus Lift-O-Mat 2698NM 0500N

$58.86



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 2698NM 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2698NM 0500N quantity

Add to basket

This gas spring is also known as CA2698NM.

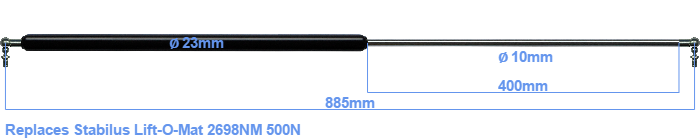

This gas spring has a cylinder diameter of 23 mm. The rod has a diameter of 10 mm. The stroke is 400 millimeter long. The total length of this replacement gas spring is 885 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 845 mm. The force of this replacement gas spring is 500 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
