Replacement for Stabilus Lift-O-Mat 2696NW 0300N

$58.86



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 2696NW 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2696NW 0300N quantity

Add to basket

This gas spring is also known as CA2696NW.

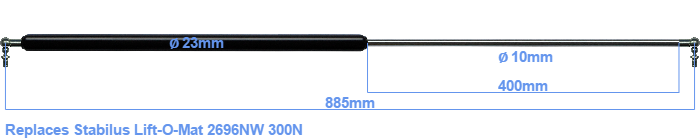

The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke is 400 millimeter long. The total length of this gas strut is 885 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 845 millimeter. The force of this replacement is 300 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are close to equal.
