Replacement for Stabilus Lift-O-Mat 2677NC 0300N

$48.88



Replacement gas spring for the Stabilus Lift-O-Mat 2677NC 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2677NC 0300N quantity

Add to basket

This gas spring is also known as CA2677NC.

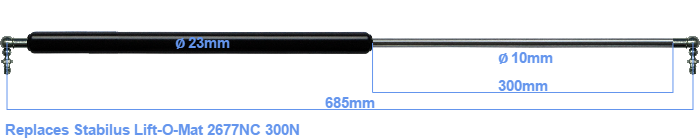

The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 300 mm. In total, the length is 685 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 645 mm. The force of this replacement gas spring is 300 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
