Replacement for Stabilus Lift-O-Mat 2646NZ 0600N

$60.08



Replacement gas spring for the Stabilus Lift-O-Mat 2646NZ 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2646NZ 0600N quantity

Add to basket

This gas spring is also known as CA2646NZ.

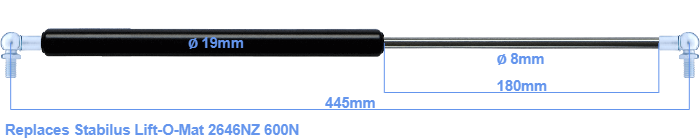

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The chrome part is called the rod. It has a length of 180 mm. The total length of this gas strut is 445 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). The force of this replacement gas spring is 600 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. The force (600 N) and dimensions are identical to the original.
