Replacement for Stabilus Lift-O-Mat 2641NX 0250N

$60.08



Replacement gas spring for the Stabilus Lift-O-Mat 2641NX 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2641NX 0250N quantity

Add to basket

This gas spring is also known as CA2641NX.

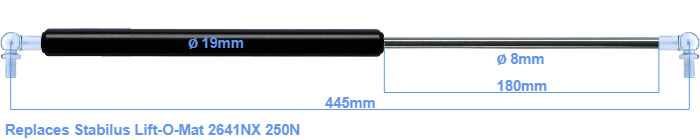

This gas spring has a cylinder diameter of 19 mm. The rod has a diameter of 8 mm. The stroke of the gas spring is 180 millimeter. The total length of this replacement is 445 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). This replacement gas spring (2641NX) has a force of 250 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
