$60.08
Replacement gas spring for the Stabilus Lift-O-Mat 2638NV 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA2638NV.

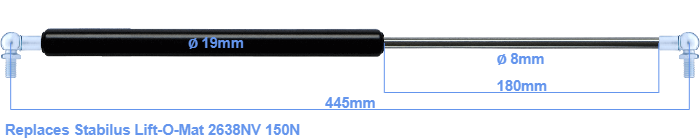

The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke of the gas spring is 180 millimeter. The total length of this replacement is exactly 445 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 405 mm. The force of this replacement is 150 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions equal.
