Replacement for Stabilus Lift-O-Mat 263060 0150N

$36.77



Replacement gas spring for the Stabilus Lift-O-Mat 263060 0150N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 263060 0150N quantity

Add to basket

This gas spring is also known as CA263060.

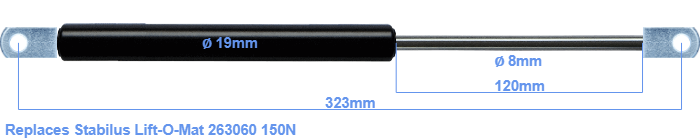

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The stroke is 120 millimeter long. The total length of this replacement is 323 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 285 mm. The force of this replacement gas spring is 150 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, the dimensions and force are nearly equal.
