Replacement for Stabilus Lift-O-Mat 2617NL 0600N

$38.65



Replacement gas spring for the Stabilus Lift-O-Mat 2617NL 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2617NL 0600N quantity

Add to basket

This gas spring is also known as CA2617NL.

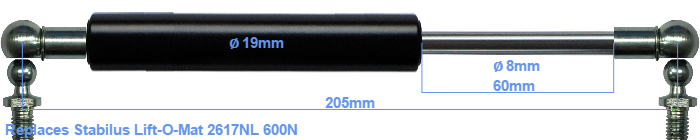

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The rod (the chrome part) is 60 mm long. In total, the length is 205 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 165 millimeter. This replacement gas spring has a force of 600 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
