Replacement for Stabilus Lift-O-Mat 2608NM 0150N

$44.38



Replacement gas spring for the Stabilus Lift-O-Mat 2608NM 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2608NM 0150N quantity

Add to basket

This gas spring is also known as CA2608NM.

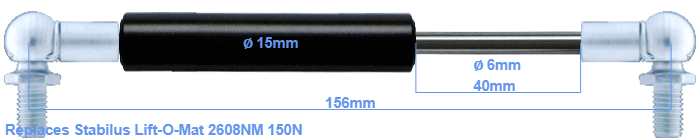

The diameter of the cylinder of this gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke is 40 millimeter long. The total length of this replacement is 156 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 112 mm. This replacement gas spring (2608NM) has a force of 150 Newton (N). This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The force (150 N) and dimensions are identical to the original.
