Replacement for Stabilus Lift-O-Mat 253308 0100N

$42.59



Replacement gas spring for the Stabilus Lift-O-Mat 253308 0100N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 253308 0100N quantity

Add to basket

This gas spring is also known as CA253308.

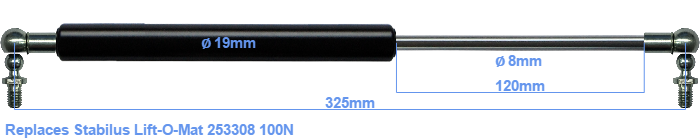

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The chrome part is called the rod. It has a length of 120 mm. In total, the length is 325 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 285 mm long (thread to thread). This replacement gas spring (253308) has a force of 100 Newton (N). This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
