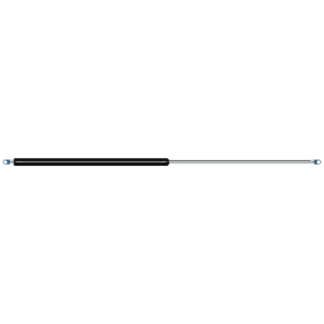

Replacement for Stabilus Lift-O-Mat 2118LW 1900N

$90.40



Replacement gas spring for the Stabilus Lift-O-Mat 2118LW 1900N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2118LW 1900N quantity

Add to basket

This gas spring is also known as CA2118LW.

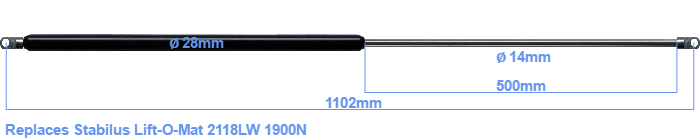

The bore of the house of this replacement gas spring is 28 mm. The cross section of the rod is 14 mm. The rod (the chrome part) is 500 mm long. The total length of this replacement gas spring is 1102 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 1048 mm. The force of this replacement gas spring is 1900 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions almost entirely equal.
