Replacement for Stabilus Lift-O-Mat 2108LB 0600N

$90.40

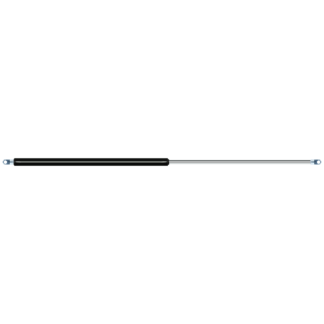

Replacement gas spring for the Stabilus Lift-O-Mat 2108LB 0600N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Quantity

Add to basket

This gas spring is also known as CA2108LB.

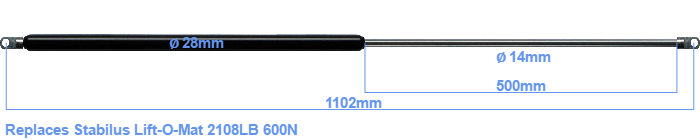

The diameter of the cylinder of this gas spring is 28 millimeters. The cross section of the rod is 14 mm. The stroke is 500 millimeter long. The total length of this replacement is 1102 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 1048 millimeter. This replacement gas spring (2108LB) has a force of 600 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (600 N) and dimensions are nearly identical to the original.
