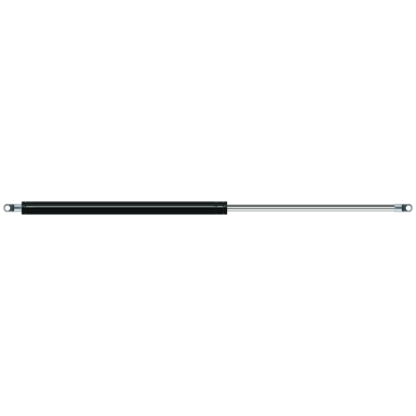

Replacement for Stabilus Lift-O-Mat 207799 4000N

$233.21



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 207799 4000N. The eye has a thickness of 14mm and a hole diameter of 14.1mm. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 40mm instead of 42mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 207799 4000N quantity

Add to basket

This gas spring is also known as CA207799.



The diameter of the cylinder of this gas spring is 40 mm. The diameter of the rod is 20 millimeter. The chrome part is called the rod. It has a length of 500 mm. The total length of this replacement is exactly 1200 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 1116 mm long (thread to thread). This replacement gas spring (207799) has a force of 4000 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
