Replacement for Stabilus Lift-O-Mat 2071LB 1700N

$70.57



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Stabilus Lift-O-Mat 2071LB 1700N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2071LB 1700N quantity

Add to basket

This gas spring is also known as CA2071LB.

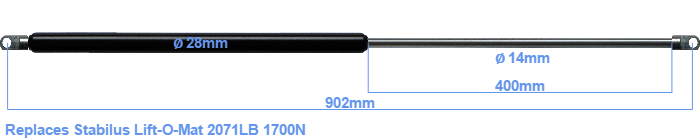

This gas spring has a cylinder diameter of 28 mm. The cross section of the rod is 14 mm. The chrome part is called the rod. It has a length of 400 mm. The total length of this replacement is 902 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 848 millimeter. This replacement gas spring has a force of 1700 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost equal.
