Replacement for Stabilus Lift-O-Mat 2063LY 2100N

$60.88



Replacement gas spring for the Stabilus Lift-O-Mat 2063LY 2100N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2063LY 2100N quantity

Add to basket

This gas spring is also known as CA2063LY.

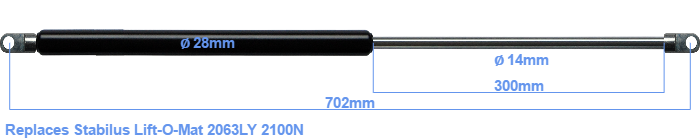

The diameter of the cylinder of this gas spring is 28 millimeters. The diameter of the rod totals 14 mm. The stroke (the retracting part) has a length of 300 mm. The total length of this replacement is exactly 702 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 648 mm. This replacement gas spring has a force of 2100 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost equal.
