Replacement for Stabilus Lift-O-Mat 2062LC 1900N

$60.88



Replacement gas spring for the Stabilus Lift-O-Mat 2062LC 1900N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2062LC 1900N quantity

Add to basket

This gas spring is also known as CA2062LC.

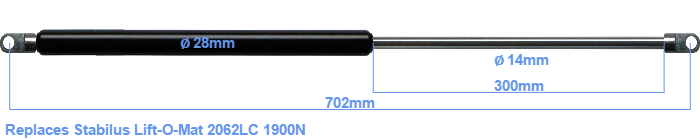

This gas spring has a cylinder diameter of 28 mm. The cross section of the rod is 14 mm. The stroke is 300 millimeter long. The total length of this gas strut is 702 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 648 mm long (thread to thread). This replacement gas spring (2062LC) has a force of 1900 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (1900 N) and dimensions are almost identical to the original.
