Replacement for Stabilus Lift-O-Mat 2061LH 1700N

$60.88



Replacement gas spring for the Stabilus Lift-O-Mat 2061LH 1700N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2061LH 1700N quantity

Add to basket

This gas spring is also known as CA2061LH.

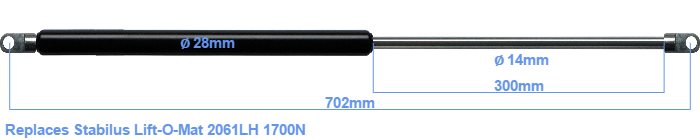

The diameter of the black cylinder of this gas spring is 28 millimeter. The diameter of the rod totals 14 mm. The stroke of the gas spring is 300 millimeter. The total length of this replacement is exactly 702 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 648 mm long (thread to thread). This replacement gas spring has a force of 1700 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
