Replacement for Stabilus Lift-O-Mat 2059LA 1500N

$60.88



Replacement gas spring for the Stabilus Lift-O-Mat 2059LA 1500N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2059LA 1500N quantity

Add to basket

This gas spring is also known as CA2059LA.

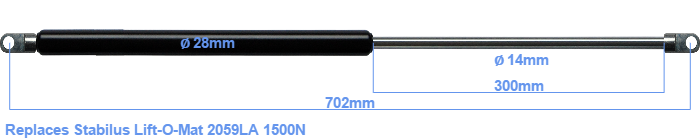

The bore of the house of this replacement gas spring is 28 mm. The rod has a diameter of 14 mm. The stroke (the retracting part) has a length of 300 mm. The total length of this replacement is exactly 702 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 648 mm long (thread to thread). The force of this replacement gas spring is 1500 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
