Replacement for Stabilus Lift-O-Mat 2048LL 1500N

$51.21



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Stabilus Lift-O-Mat 2048LL 1500N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2048LL 1500N quantity

Add to basket

This gas spring is also known as CA2048LL.

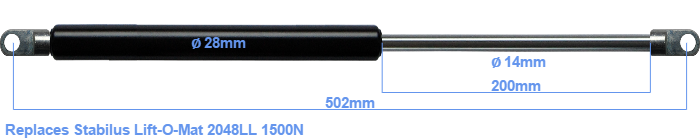

The diameter of the cylinder of this gas spring is 28 millimeters. The diameter of the rod totals 14 mm. The rod (the chrome part) is 200 mm long. The total length of this replacement is 502 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 448 millimeter. The force of this replacement gas spring is 1500 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
