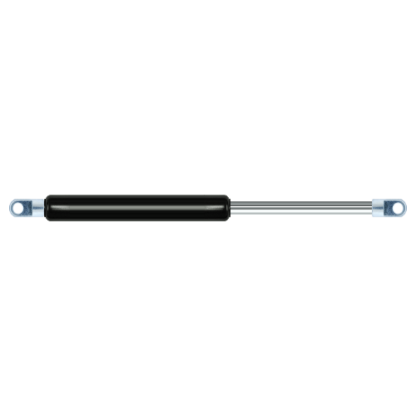

Replacement for Stabilus Lift-O-Mat 2043LJ 1500N

$46.36



Replacement gas spring for the Stabilus Lift-O-Mat 2043LJ 1500N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2043LJ 1500N quantity

Add to basket

This gas spring is also known as CA2043LJ.



The bore of the house of this replacement gas spring is 28 mm. The rod has a diameter of 14 mm. The rod (the chrome part) is 150 mm long. The total length of this replacement is 402 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 348 mm long (thread to thread). The force of this replacement gas spring is 1500 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
