Replacement for Stabilus Lift-O-Mat 2042LO 2100N

$43.85



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 2042LO 2100N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2042LO 2100N quantity

Add to basket

This gas spring is also known as CA2042LO.

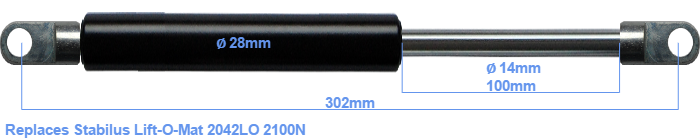

The diameter of the cylinder of this gas spring is 28 mm. The diameter of the rod is 14 millimeter. The stroke of the gas spring is 100 millimeter. The total length of this replacement is exactly 302 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 248 mm long (thread to thread). The force of this replacement gas spring is 2100 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (2100 N) and dimensions are almost entirely identical to the original.
