Replacement for Stabilus Lift-O-Mat 2039LM 1700N

$43.85



Replacement gas spring for the Stabilus Lift-O-Mat 2039LM 1700N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2039LM 1700N quantity

Add to basket

This gas spring is also known as CA2039LM.

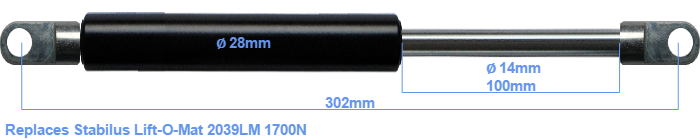

The bore of the house of this replacement gas spring is 28 mm. The diameter of the rod is 14 millimeter. The rod (the chrome part) is 100 mm long. The total length of this replacement gas spring is 302 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 248 millimeter. This replacement gas spring (2039LM) has a force of 1700 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
