Replacement for Stabilus Lift-O-Mat 1938KU 0150N

$40.15



Replacement gas spring for the Stabilus Lift-O-Mat 1938KU 0150N. This fits a (possibly already present) ball with a diameter of 13mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
This replacement gas spring is 5mm longer than the original gas spring. In general, this will not cause any problems.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 1938KU 0150N quantity

Add to basket

This gas spring is also known as CA1938KU.

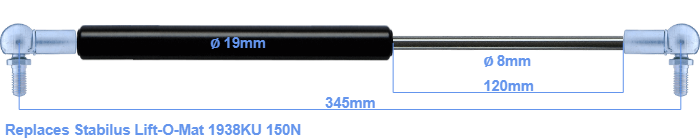

This gas spring has a cylinder diameter of 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 120 mm. The total length of this gas strut is 345 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 285 mm long (thread to thread). This replacement gas spring has a force of 150 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
