Replacement for Stabilus Lift-O-Mat 1847LW 1300N

$43.85



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 1847LW 1300N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 1847LW 1300N quantity

Add to basket

This gas spring is also known as CA1847LW.

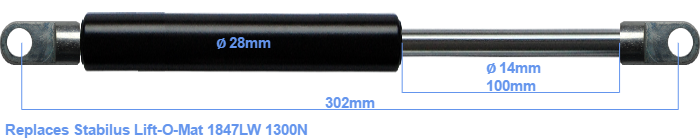

The diameter of the cylinder of this gas spring is 28 mm. The diameter of the rod totals 14 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement gas spring is 302 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 248 mm long (thread to thread). The force of this replacement is 1300 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
