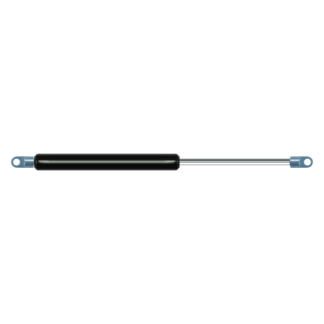

Replacement for Stabilus Lift-O-Mat 163457 0075N

$33.53



Replacement gas spring for the Stabilus Lift-O-Mat 163457 0075N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 163457 0075N quantity

Add to basket

This gas spring is also known as CA163457. This gas spring is also used in Mont Blanc Triton 450, Mont Blanc Triton 500.

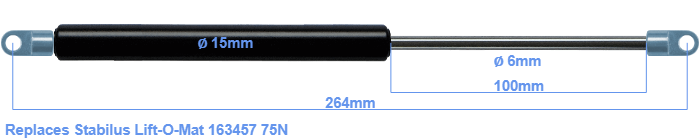

The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod totals 6 mm. The rod (the chrome part) is 100 mm long. The total length of this gas strut is 264 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 232 mm. This replacement gas spring has a force of 75 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This replacement gas spring is a HAHN gas spring. The force (75 N) and dimensions are almost entirely identical to the original.
