Replacement for Stabilus Lift-O-Mat 1431EG 0350N
$46.79
Replacement gas spring for the Stabilus Lift-O-Mat 1431EG 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA1431EG.

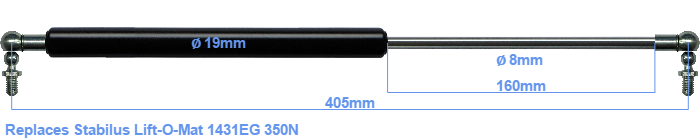

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 160 mm. In total, the length is 405 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 365 mm. The force of this replacement is 350 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
