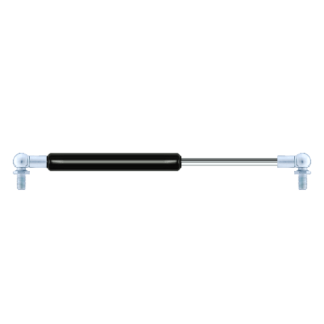

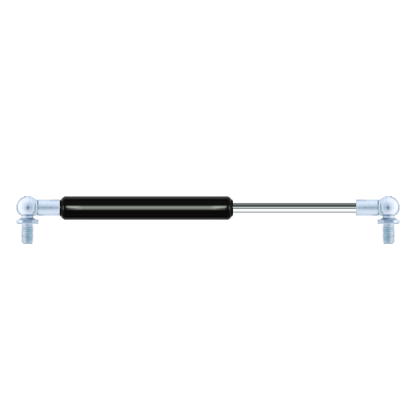

Replacement for Stabilus Lift-O-Mat 1395KO 0150N

$36.56



Replacement gas spring for the Stabilus Lift-O-Mat 1395KO 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 1395KO 0150N quantity

Add to basket

This gas spring is also known as CA1395KO.



The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod is 6 millimeter. The stroke (the retracting part) has a length of 80 mm. In total, the length is 236 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). The force of this replacement is 150 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are equal.
