Replacement for Stabilus Lift-O-Mat 1338QL 0150N

$48.16



Replacement gas spring for the Stabilus Lift-O-Mat 1338QL 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 1338QL 0150N quantity

Add to basket

This gas spring is also known as CA1338QL.

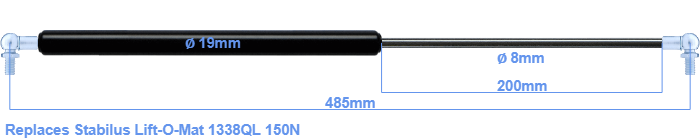

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 200 mm long. The total length of this gas strut is 485 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). This gas spring (1338QL) has a force of 150 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This replacement gas spring is a HAHN gas spring. The force (150 N) and dimensions are identical to the original.
