Replacement for Stabilus Lift-O-Mat 095613 0600N

$58.86



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 095613 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 095613 0600N quantity

Add to basket

This gas spring is also known as CA095613.

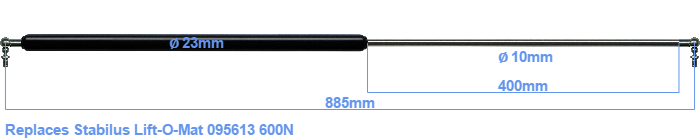

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The rod (the chrome part) is 400 mm long. In total, the length is 885 millimeter. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 845 mm. This replacement gas spring has a force of 600 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The force (600 N) and dimensions are close to identical to the original.
