Replacement for Stabilus Lift-O-Mat 095605 0500N

$58.86



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 095605 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 095605 0500N quantity

Add to basket

This gas spring is also known as CA095605.

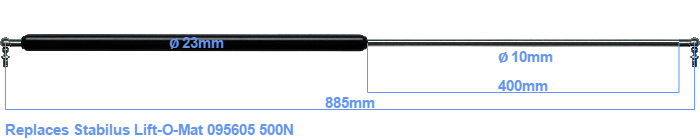

The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke of the gas spring is 400 millimeter. The total length of this replacement is 885 millimeter. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 845 mm. The force of this replacement gas spring is 500 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost entirely equal.
