Replacement for Stabilus Lift-O-Mat 095451 0200N

$54.62



Out of Stock until approximately 12/3/2024,

Replacement gas spring for the Stabilus Lift-O-Mat 095451 0200N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 095451 0200N quantity

Add to basket

This gas spring is also known as CA095451.

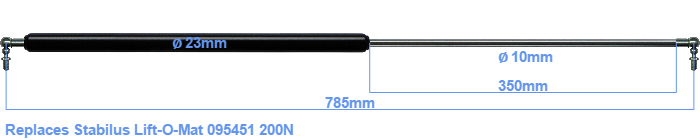

The diameter of the black cylinder of this gas spring is 23 millimeter. The rod has a diameter of 10 mm. The stroke of the gas spring is 350 millimeter. The total length of this gas strut is 785 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 745 millimeter. This replacement gas spring has a force of 200 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
