Replacement for Stabilus Lift-O-Mat 095079 0350N

$43.06

Replacement gas spring for the Stabilus Lift-O-Mat 095079 0350N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Quantity

Add to basket

This gas spring is also known as CA095079.

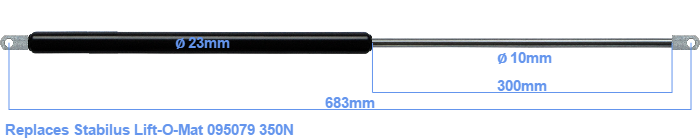

The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod is 10 millimeter. The stroke (the retracting part) has a length of 300 mm. In total, the length is 683 millimeter. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). The force of this replacement gas spring is 350 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
