Replacement for Stabilus Lift-O-Mat 095001 1150N

$40.07



Replacement gas spring for the Stabilus Lift-O-Mat 095001 1150N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 095001 1150N quantity

Add to basket

This gas spring is also known as CA095001.

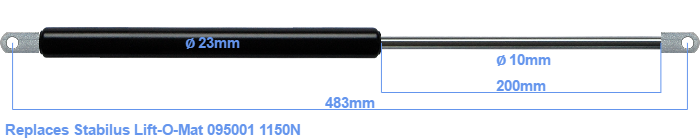

The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod totals 10 mm. The stroke of the gas spring is 200 millimeter. The total length of this replacement is 483 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 445 millimeter. The force of this replacement gas spring is 1150 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
