Replacement for Stabilus Lift-O-Mat 094978 0800N



$41.57


Replacement gas spring for the Stabilus Lift-O-Mat 094978 0800N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 19mm.


    • View this gas spring in our configurator.
    This gas spring is also known as CA094978.
    Stabilus Lift-O-Mat 094978
    AR19

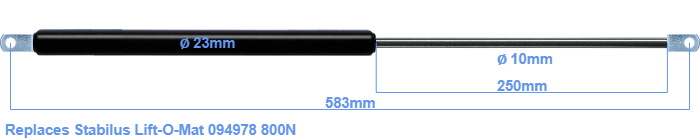

    The diameter of the cylinder of this gas spring is 23 millimeters. The rod has a diameter of 10 mm. The stroke of the gas spring is 250 millimeter. The total length of this replacement is exactly 583 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. The force of this replacement is 800 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
    Category:
    Replacement for Stabilus Lift-O-Mat 094978 0800N
