Replacement for Stabilus Lift-O-Mat 094889 0800N



$42.34


Replacement gas spring for the Stabilus Lift-O-Mat 094889 0800N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.


    • View this gas spring in our configurator.
    This gas spring is also known as CA094889.
    Stabilus Lift-O-Mat 094889
    AR19

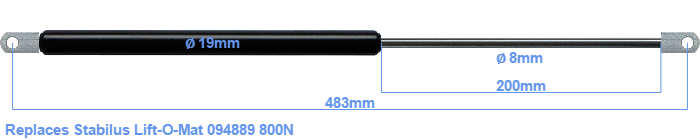

    The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The rod (the chrome part) is 200 mm long. In total, the length is 483 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. This replacement gas spring (094889) has a force of 800 Newton (N). This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost equal.
    Category:
    Replacement for Stabilus Lift-O-Mat 094889 0800N
