Replacement for Stabilus Lift-O-Mat 094862 0250N
$42.34
Replacement gas spring for the Stabilus Lift-O-Mat 094862 0250N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.
View this gas spring in our configurator. This gas spring is also known as CA094862.

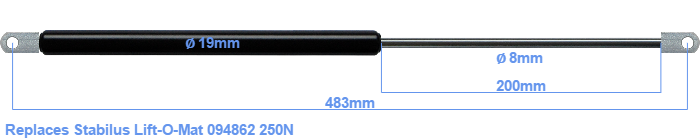

The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The rod (the chrome part) is 200 mm long. The total length of this replacement is exactly 483 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). The force of this replacement is 250 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
