Replacement for Stabilus Lift-O-Mat 094854 0150N

$42.34



Replacement gas spring for the Stabilus Lift-O-Mat 094854 0150N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 094854 0150N quantity

Add to basket

This gas spring is also known as CA094854.

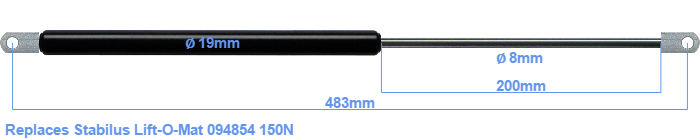

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 200 mm long. The total length of this replacement is 483 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). This gas spring (094854) has a force of 150 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost equal.
