Replacement for Stabilus Lift-O-Mat 094765 0150N

$40.97



Replacement gas spring for the Stabilus Lift-O-Mat 094765 0150N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 094765 0150N quantity

Add to basket

This gas spring is also known as CA094765.

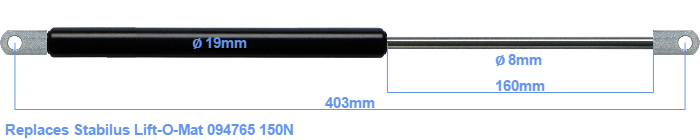

The diameter of the cylinder of this gas spring is 19 millimeters. The cross section of the rod is 8 mm. The chrome part is called the rod. It has a length of 160 mm. The total length of this replacement is exactly 403 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 365 mm. The force of this replacement is 150 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
